**Integrate solar panel specifications into your architectural drawings before breaking ground.** This single decision eliminates costly structural modifications later and ensures your roof pitch, orientation, and load-bearing capacity align perfectly with solar requirements. In British Columbia, where new construction offers unique advantages for solar integration, planning ahead means lower installation costs, cleaner aesthetics, and immediate energy savings from day one.
**Coordinate with your electrical contractor to install conduit pathways during framing.** Running wiring from your roof to the electrical panel while walls are open costs a fraction of retrofit installations. Request oversized conduit to accommodate future system expansions and ensure your main electrical panel has adequate capacity for solar integration—typically 200 amps for residential projects.
**Lock in BC’s solar incentives and net metering programs during your building permit phase.** New construction projects qualify for specific rebates that reward integrated renewable energy systems. Your municipality may also offer expedited permitting for solar-ready homes, and some BC Hydro regions provide connection agreements that grandfather favorable rates for decades.
**Design your roof geometry with unshaded southern exposure.** Unlike retrofits where you’re constrained by existing structures, new builds let you eliminate future shading issues from chimneys, vents, and neighboring trees. Position these elements strategically while optimizing roof angles between 30-40 degrees—ideal for BC’s latitude—to maximize year-round energy production.
The construction phase represents your single best opportunity to build solar integration right, avoiding the equipment removal, structural reinforcement, and aesthetic compromises that plague retrofit installations. When solar becomes part of your building’s DNA rather than an afterthought, you create a truly optimized renewable energy system.
The New Construction Solar Advantage: More Than Just Timing

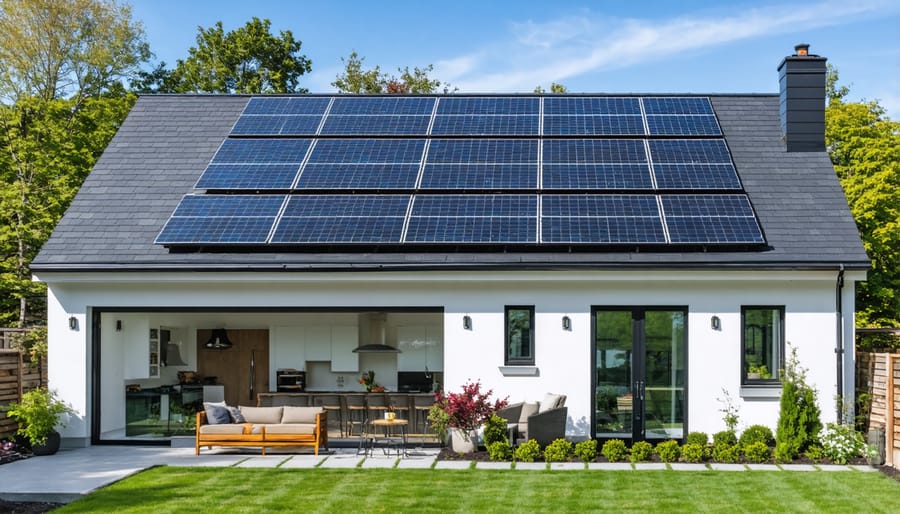

Structural Benefits That Retrofit Owners Can Only Dream About
When you design a home with solar from the start, you’re building the foundation for optimal energy production in ways that retrofit installations simply cannot match. This structural advantage begins with your roof itself—architects can specify the ideal pitch (typically between 30-40 degrees in BC) and orientation to maximize southern exposure, rather than working around whatever angle already exists.
Perhaps most importantly, new construction allows engineers to incorporate reinforced mounting points directly into the roof structure. These pre-planned attachment areas distribute the weight of solar arrays perfectly across load-bearing elements, eliminating concerns about structural integrity that plague retrofit projects. One Kelowna family recently shared how their builder integrated these reinforcements for less than $800 during framing—a fraction of what strengthening an existing roof would cost.
The electrical infrastructure benefits are equally compelling. Your electrician can run conduit through walls and attic spaces before drywall goes up, positioning inverters, disconnects, and monitoring equipment in optimal locations. This hidden infrastructure looks cleaner and functions more efficiently than the exposed conduit runs typical of retrofits.
You can also size your electrical panel appropriately from day one, avoiding the costly upgrades that many retrofit owners face when their existing panels lack capacity for solar integration. Strategic placement of the main service panel near anticipated solar equipment saves on both materials and installation time.
This integrated approach doesn’t just save money—it creates a cohesive system where every component works in harmony with your home’s design, rather than being awkwardly adapted to it.
The Real Cost Comparison: New Build vs. Retrofit
Installing solar panels during new construction typically costs 15-30% less than retrofitting. In BC, a new build solar installation averages $2.50-$3.00 per watt, compared to $3.00-$3.50 per watt for retrofits. For a typical 8kW residential system, that’s a potential savings of $4,000-$8,000.
These savings come from eliminating duplicate labour—your roofing crew and electricians coordinate seamlessly, avoiding separate site visits. There’s no need to remove and reinstall roofing materials, and structural reinforcements are built in from the start rather than added later.
A Kelowna family who integrated solar during their 2023 home build saved $6,200 compared to their neighbour’s retrofit quote. They also shortened their payback period by nearly two years thanks to optimized panel placement and no modification costs.
Want to see your potential savings? Use our interactive solar calculator to compare new build versus retrofit costs based on your specific project size, location, and energy needs. Input your home’s square footage and roof specifications to receive a personalized cost analysis and timeline estimate.
Design Decisions That Make or Break Solar Performance
Roof Orientation and Pitch: Getting It Right the First Time
In British Columbia, optimal solar panel performance typically occurs with roof pitches between 30 and 40 degrees—angles that align well with our latitude and maximize year-round energy capture. South-facing orientations remain the gold standard, capturing up to 100% of available solar energy, though southeast and southwest orientations can still deliver 90-95% efficiency.
When designing your new build, prioritize south-facing roof sections for solar arrays. If your home’s aesthetic calls for a different primary orientation, consider incorporating purpose-built south-facing sections specifically for panels. Many BC homeowners successfully blend architectural vision with energy goals by dedicating garage roofs, additions, or specific roof planes to solar while maintaining their preferred home orientation.
A Kelowna family recently demonstrated this balance beautifully: their modern farmhouse features a north-facing front elevation for curb appeal, while the rear garage and extended south-facing roof section accommodate their 8kW solar system—completely invisible from the street yet producing enough energy to cover their annual consumption.
Remember that steeper pitches (closer to 40 degrees) perform better during winter months when the sun sits lower in the sky, particularly valuable in cloudier coastal regions. Flatter pitches favour summer production but may require more frequent cleaning. Working with your architect early ensures these considerations shape your design from the foundation up, avoiding compromise later.
Shading Analysis Before You Break Ground
Before construction begins, conduct a thorough shading analysis to protect your solar investment. Walk your property at different times of day and seasons to identify potential obstacles. Note nearby trees—both on your lot and neighboring properties—that could cast shadows as they mature. A tree that seems harmless today might block significant sunlight in five years.
Consider the position and height of adjacent buildings, especially in growing BC neighborhoods where future development could impact your solar access. Local planning departments can provide information about upcoming construction projects near your site.
A home energy audit professional or solar installer can use specialized tools to model year-round sun paths and predict shading patterns. This analysis helps you optimize both your home’s orientation and roof design before pouring the foundation.
In one Kelowna project, repositioning the home just three meters north on the lot avoided afternoon shadows from mature Douglas firs, increasing solar production by 18%. These early adjustments cost nothing compared to redesigning after construction begins or accepting reduced system performance for decades.
Electrical Panel and Conduit Planning
Proper electrical planning ensures your solar system integrates smoothly with your new home’s power infrastructure. Start by sizing your main electrical panel to accommodate both household circuits and solar input—most BC solar installations require a 200-amp service panel minimum, though your electrician may recommend upgrading to 400-amp for future-proofing, especially if you’re planning electric vehicle charging or heat pump systems.
Strategic conduit placement during construction saves thousands compared to retrofitting. Run conduit from your planned solar array location through the attic or exterior walls directly to the panel location before drywall installation. Include extra conduit runs for potential battery storage—a growing choice among BC homeowners seeking backup power during winter outages.
Work with a certified electrician familiar with BC’s solar regulations and the Canadian Electrical Code requirements. They’ll ensure proper grounding, disconnect switches, and rapid shutdown systems that meet safety standards. One Vancouver Island family reduced their electrical integration costs by 60% simply by coordinating panel placement and conduit routing during their home’s framing stage, demonstrating how early planning delivers significant savings while maintaining code compliance.

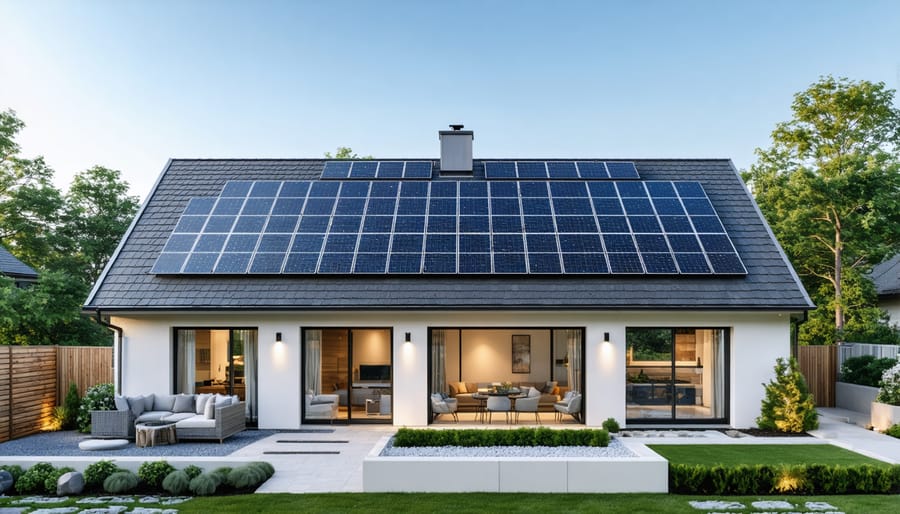

Working With Your Builder: The Conversation You Need to Have
Finding Solar-Savvy Contractors in BC
Choosing the right contractor makes all the difference when integrating solar into new construction. Start by exploring Solar BC’s certified installer network, which connects you with professionals who’ve met rigorous training and safety standards. Look for builders who hold certifications from the Canadian Solar Industries Association (CanSIA) or have completed Solar BC’s accredited programs.
Ask potential contractors about their specific experience with new-build solar integration—not just retrofit installations. Request examples of projects where they’ve coordinated with framers, electricians, and roofers during the construction phase. The best solar-savvy builders understand structural loading requirements, proper conduit placement, and how to prepare electrical panels for future expansion.
Check references and visit completed projects if possible. A qualified contractor should readily discuss how they’ve optimized roof angles, positioned arrays to avoid shading, and integrated battery storage provisions. They’ll also navigate BC’s permit requirements and utility interconnection processes smoothly.
While some homeowners consider DIY solar installation, new construction projects typically benefit from professional expertise to ensure everything meets building codes and performs optimally for decades. Your contractor should provide detailed warranties covering both equipment and workmanship—typically 10-25 years for panels and inverters.
The Essential Solar-Ready Checklist for Your Building Contract
Getting your building contract right from the start saves headaches and additional costs down the road. When you’re working with your contractor and architect, include these specific solar-ready provisions to ensure your new build welcomes solar panels seamlessly.
**Structural Requirements**: Your contract should specify that the roof structure can support an additional 3-5 pounds per square foot to accommodate solar panels and racking systems. Request documentation of the roof load rating upon completion. For homes in BC’s snowier regions like the Kootenays, ask for calculations that account for both solar equipment and seasonal snow loads.
**Roof Specifications**: Include language requiring appropriate roof pitch (ideally 30-40 degrees for optimal solar production in BC) and orientation. Specify that the south-facing roof section remain free of vents, chimneys, or other obstructions that could shade panels. One Kelowna family discovered their builder had placed three roof vents directly in their planned solar array area—a costly change order that could have been prevented with clear contract language.
**Electrical Infrastructure**: Mandate a 200-amp electrical panel with dedicated spaces for solar equipment, including breakers for inverters and battery storage. Request conduit pathways from the roof to the electrical room, even if you’re not installing panels immediately. This pre-wiring costs just $500-800 during construction but saves $2,000-3,000 later.
**Documentation Deliverables**: Require your contractor to provide final roof plans, electrical schematics, and structural engineering reports. These documents prove invaluable when obtaining solar permits and ensure installers have accurate information.
Include completion timelines for each solar-ready element, with clear consequences for deviations that compromise solar installation.
BC Building Codes, Permits, and Solar Requirements
What BC’s Step Code Means for Your Solar Plans
BC’s Step Code provides a clear framework for energy-efficient construction that works hand-in-hand with solar panel installation. This provincial regulation establishes progressive energy performance targets, ranging from Step 1 (basic improvements) to Step 5 (net-zero energy ready). Understanding these requirements early helps you design a building that naturally complements solar technology.
When planning new construction, aim for Step 3 or higher. Buildings at this level feature superior insulation, air sealing, and efficient mechanical systems—reducing overall energy demand before solar even enters the picture. This approach means you’ll need fewer panels to meet your energy needs, lowering installation costs while maximizing your environmental impact.
The Step Code also opens doors to financial incentives. Many BC municipalities offer rebates or expedited permitting for projects meeting higher steps, and combining these benefits with solar installation creates compound savings. For example, a Kelowna homeowner achieved Step 4 certification while installing an 8kW solar array, qualifying for both municipal rebates and reduced utility connection fees.
Work with your architect and solar installer simultaneously during the design phase. They can optimize roof pitch, orientation, and structural support to meet Step Code requirements while creating the ideal foundation for your solar system. This integrated approach ensures compliance and maximizes long-term performance.
Navigating Municipal Solar Incentives During Construction
British Columbia municipalities offer various financial incentives that make solar installation during new construction even more attractive. Many communities provide BC solar rebates specifically designed for builders incorporating renewable energy systems from the ground up.
Net metering programs allow you to receive credits for excess electricity your solar panels generate, effectively turning your meter backward when production exceeds consumption. These credits offset future utility bills, maximizing your return on investment. Several BC municipalities also offer expedited permitting processes for solar-ready new construction, reducing approval timelines and administrative costs.
Property tax exemptions represent another significant benefit—some regions exclude the added property value from solar installations when calculating assessments. Contact your local municipal office early in the planning phase to identify available programs. The City of Vancouver’s Renewable Energy Systems Program and similar initiatives across BC demonstrate strong community commitment to supporting solar adoption. Taking advantage of these incentives during construction, rather than retrofitting later, ensures you capture maximum financial benefits while contributing to your community’s sustainability goals.
Future-Proofing: Battery Storage and EV Charging Integration
Pre-Wiring for Battery Systems You’ll Want in 5 Years
Battery technology is evolving rapidly, and what seems optional today will likely become standard within five years. British Columbia’s CleanBC Roadmap is accelerating this shift, with increasing incentives for energy storage and time-of-use electricity rates making batteries more economically attractive. During construction, installing the right electrical infrastructure now saves thousands in retrofitting costs later.
At minimum, designate a location for future battery installation near your main electrical panel with adequate space—typically a 2×3 foot wall area in a temperature-controlled environment. Run conduit from your solar inverter location to this battery space, even if it remains empty initially. This simple step costs roughly $300-500 during construction but prevents cutting into finished walls later.
Consider installing a sub-panel rated for battery storage systems, which allows seamless integration when you’re ready. Many BC homeowners are discovering that batteries paired with solar provide backup power during increasingly common grid outages and maximize savings by storing solar energy for evening use.
A Kelowna family who pre-wired their 2020 home added batteries in 2023 for $8,000 less than neighbours retrofitting identical systems. Their advice? “Future-proof your electrical infrastructure—technology changes, but conduit doesn’t.”
EV Charging Infrastructure: Installing During Construction
Planning for electric vehicle charging during construction creates a powerful sustainability partnership with your solar system. When designed together, these technologies maximize your renewable energy investment and future-proof your property for BC’s growing EV adoption.
Start by running dedicated 240-volt circuits to your garage or parking area, even if you don’t own an EV yet. This forward-thinking approach costs significantly less during construction than retrofitting later. Position circuits near your electrical panel to minimize wire runs and installation complexity.
Your main electrical panel capacity becomes crucial when combining solar and EV charging. Most EV chargers require 40-50 amps, while solar systems add their own load considerations. Work with your electrician to ensure your panel can handle both—typically requiring at least 200-amp service for residential builds. In many BC homes, upgrading panels during construction adds minimal cost compared to post-construction modifications.
The real advantage emerges when your solar panels generate daytime electricity that charges your EV. A Vancouver family recently shared how their 8kW solar array produces enough power to cover their daily commute and household needs. By scheduling charging during peak solar production hours, they’ve reduced grid dependence by 70%.
Consider installing a smart EV charger that integrates with your solar monitoring system, allowing you to track renewable energy flowing directly into your vehicle—a tangible reminder of your environmental impact.

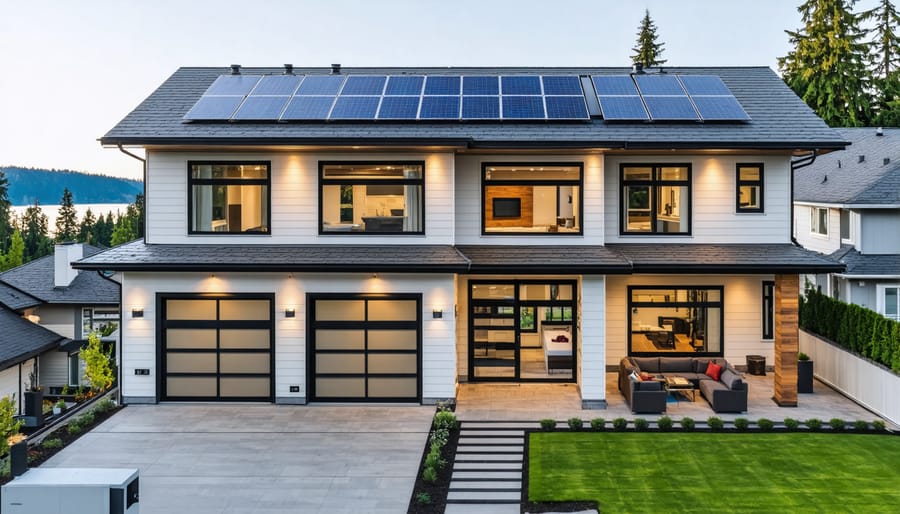

Real BC Success Stories: New Construction Solar Done Right
When Nadia and Marcus built their family home in Kelowna in 2022, they decided to integrate solar from day one. Working with their builder, they oriented the home to maximize southern exposure and designed a roof pitch of 35 degrees—ideal for BC’s latitude. Their 8.5 kW system was wired during framing, eliminating the need to drill through finished surfaces later. “The electrician told us we saved at least $2,000 by running conduit before drywall went up,” Nadia explains. Their total system cost came to $18,700 after provincial and federal incentives, and they’re now generating roughly 85% of their annual electricity needs. The couple’s advice? “Don’t treat solar as an afterthought. When our architect knew about our solar plans from the start, she helped us avoid shading issues from a chimney that would have blocked panels.”
Across the province in Courtenay, a local coffee roastery called Mountain Bean took a similar approach when constructing their new facility in 2023. Owner James Chen needed substantial power for roasting equipment and saw new construction as the perfect opportunity to go solar. His team installed a 25 kW commercial system integrated with the building’s electrical design. “We coordinated with BC Hydro early to streamline our net metering application,” James notes. The system cost approximately $52,000 after incentives, and monthly electricity bills dropped from a projected $800 to under $200. James emphasizes one key lesson: “We initially planned to wait a year after opening, but our contractor showed us the cost difference. Installing during construction saved us nearly $8,000 in labor and avoided disrupting our business later.”
Meanwhile, in Victoria, the Martinez family built a laneway house in 2023 with a modest 4 kW solar array. Their smaller project proved that solar integration works at any scale. By planning ahead, they allocated roof space efficiently despite the compact footprint and connected their system before the final inspection. Their investment of $9,200 (post-incentive) now covers about 70% of the laneway house’s energy needs. “Start conversations with your solar installer and builder simultaneously,” recommends homeowner Sofia Martinez. “We avoided several design conflicts because everyone was on the same page from permit stage onward.”
These BC families and businesses share a common thread: early planning, open communication with builders, and treating solar as a core building component rather than an add-on delivered remarkable cost savings and hassle-free installations.
Building solar into your new construction isn’t just a smart decision—it’s an investment that pays dividends for decades. By integrating solar panels during the planning phase, you’re positioning yourself to save 15-30% on installation costs compared to retrofitting, while maximizing your system’s efficiency through optimal roof design and electrical integration. The financial advantages are substantial: lower upfront costs, increased property value, and immediate utility savings that compound year after year. Environmentally, you’re reducing your carbon footprint from day one, contributing to British Columbia’s clean energy goals while protecting yourself from rising electricity rates.
The time to act is now, while your building plans are still flexible. Start by scheduling a consultation with Solar BC’s certified installers who understand local building codes and can work directly with your contractor. Use our interactive savings calculator to see your personalized return on investment based on your specific location and building design.
Take these immediate actions: share your preliminary building plans with a solar consultant, discuss structural requirements with your builder before framing begins, and explore available BC incentives and rebates. Many homeowners who waited until after construction wished they’d integrated solar earlier—the structural modifications and additional labour costs could have been entirely avoided.
Your solar-ready new construction is an achievable goal. The BC community of solar adopters continues to grow, with local success stories demonstrating that early planning transforms solar from an add-on to a seamless, cost-effective feature of sustainable building.
